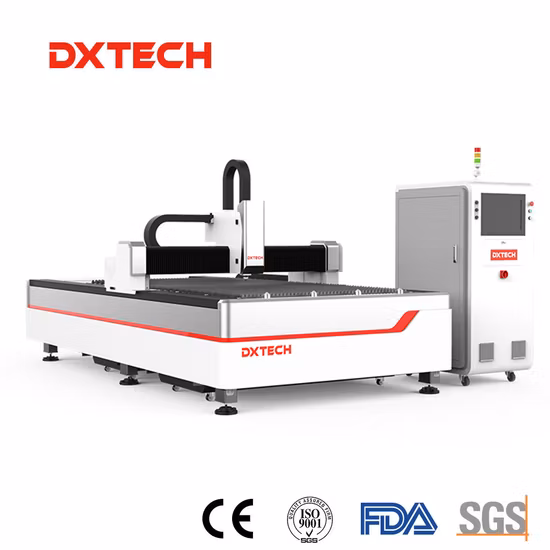

Best Quality1000W 2000W 3000W 4000W Metal Fiber Laser Cutting Machine for Stainless Carbon Steel Sheet with Raycus/Ipg
Package Size 4320.00cm * 2250.00cm * 1950.00cm Package Gross Weight 3000.000kg Features: 1. Simple operating system, to
Basic Info.
Model NO. | DXTECH-F Series |
Cooling System | Water Cooling |
Technical Class | Continuous Wave Laser |
Applicable Material | Metal |
Structure Type | Gantry Type |
Laser Classification | Raycus |
Laser Technology | Laser Control Fault Cutting |
Motor | FUJI |
Cast Aluminum Beam | Higher Machining Accuracy |
Cast Iron Bed | Gray Cast Iron |
Transmission | Hiwin Guide Rails |
Model | 1530f 2040f 2560f |
Laser Source | Raycus/Ipg |
Affect Facor | The Shape of The Laser Beam, The Width of The Slit |
Component | Fiber Laser, Stepper Motor, Servo Motor, Bed, Lase |
Driving System | Japan Yaskawa Servo Motor |
Laser Head | Raytools |
Laser Power | 1000W/2000W/3000W/4000W |
Working Table | Blade Table |
Whether CNC | Yes |
Control System | Cypcut |
Cutting Thickness | 0-30mm |
Transport Package | 3 Layers |
Specification | more than 4500kg |
Trademark | DXTECH |
Origin | Jinan, Shandong Prvovince, China |
HS Code | 8461500090 |
Production Capacity | 100 Sets/Month |
Packaging & Delivery
Package Size 4320.00cm * 2250.00cm * 1950.00cm Package Gross Weight 3000.000kgProduct Description
Features:
1. Simple operating system, to realize rapid cutting on the shape what you want on the metal material, like Steel, Iron, Aluminum Plate, Carbon steel, Stainless steel, Cooper, and galvanized sheet .
2.Independent control cabinet1) Dust proof: all electrical components and laser sources are built in an independent control cabinet to prevent dust pollution.2) Automatic thermostat: equipped with an automatic constant temperature air conditioner, which can prevent the damage to the components due to the high temperature.3. Aviation aluminum alloy beam to ensure the running speed is up to 150m/min.4. World-class components like guide rails and racks to guarantee the cutting accuracy.5. The strong iron flatbed to keep the machine for 20 years without distortion.6. When considering sheet metal laser cutting prices, laser cutting has a higher quality cutting edge, it saves money and time cost if we count all cost all.Technical ParametersModel | DXTECH-1530F | DXTECH-2040F | DXTECH-2560F |
Working area | 1515*3030mm | 2020*4040mm | 2525*6050mm |
Positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
Repositioning accuracy | ±0.02mm | ±0.02mm | ±0.02mm |
Max. acceleration | 1.5G | 1.5G | 1.5G |
Laser power | 1kW - 4kW | 1kW - 4kW | 1kW - 4kW |
Max. running speed | 140m/min | 140m/min | 140m/min |
Focusing method | Auto/manual | Auto/manual | Auto/manual |
